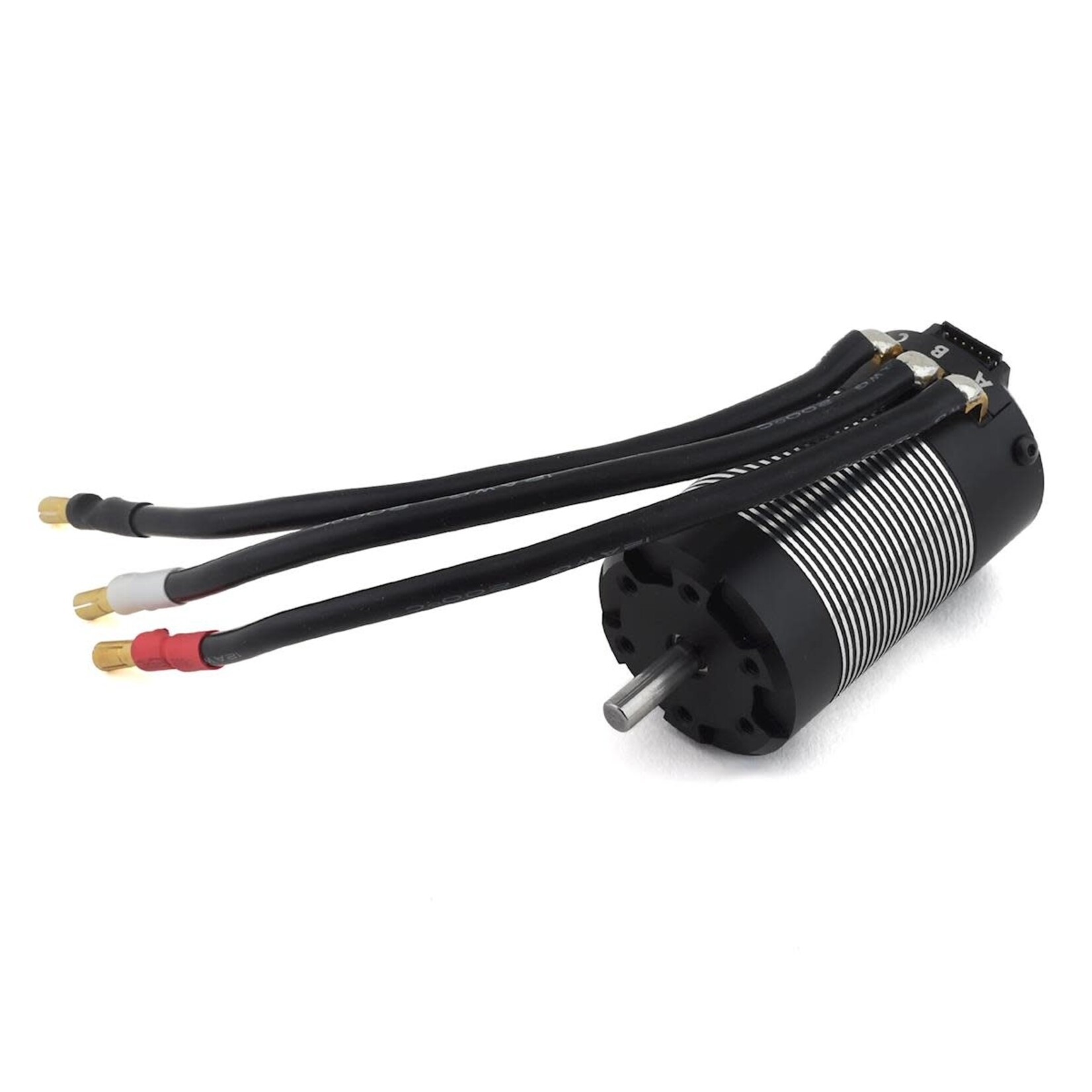

The Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Race Motor is a rock race honed variation with higher quality materials for less heat, more torque, and less brake fade. It retains great low speed control and throttle feel, giving you an edge whether in the rocks or on the track.
Designed for 1/10th scale U4, rock racing, endurance, drag racing and sled pulling. Recommended battery 2s lipo, 5000mah 35c or greater. Recommended ESC 1/10th or 1/8th scale suitable for 4x4 vehicles. If you get your motor wet, you must clean, dry, and relube bearings to avoid damage.
Warning! Do not extend screws into motor plate more than 3.5mm or damage to windings may occur.
Features:
- Four pole 18mm diameter x 26mm length rotor
- Twelve slot stator
- 180C resin impregnated copper windings
- 200C rated high strength neodymium magnets
- Oversized bearings
- Sensored
- Waterproof sensor board
- Sensor wire included
NOTE: 1 year warranty from date of purchase. Does not include damage from overheating, rusting, or improper installation.
Specifications:
Type: "550" size motor
Mount Pattern: 25mm
Mounting Hardware: M3 screws
Shaft Diameter: 5mm
Can Size: 36mm diameter x 60.5mm length
Weight: 236.5g
RPM: 60,000 rpm max
