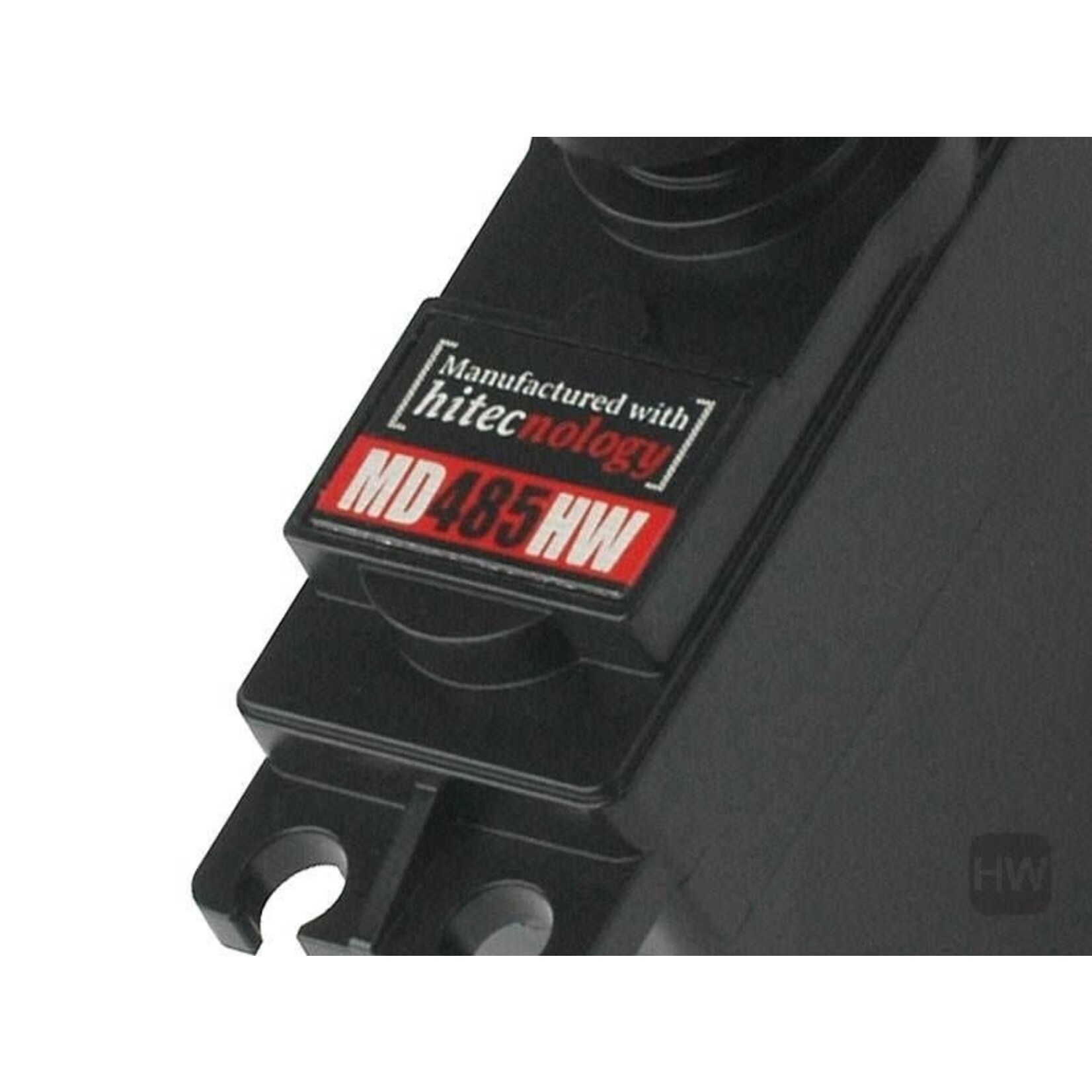

MD485HW - 20mm Standard Composite Gear. Initially designed for the industrial servo market, Hitec’s MD485HW features a magnetic encoder position sensor for increased accuracy and durability.

Features

• High Resolution 32-bit (4096 steps) Programmable Digital Circuit
• PWM or TTL Protocol Capability
• Magnetic Encoder Position Sensor
• Wide Operating Voltage (4.8 ~ 8.4V)
• Heavy-Duty, Long Life Motors
• IP65 Rated Cases
• Customization and Modification Options Available

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
