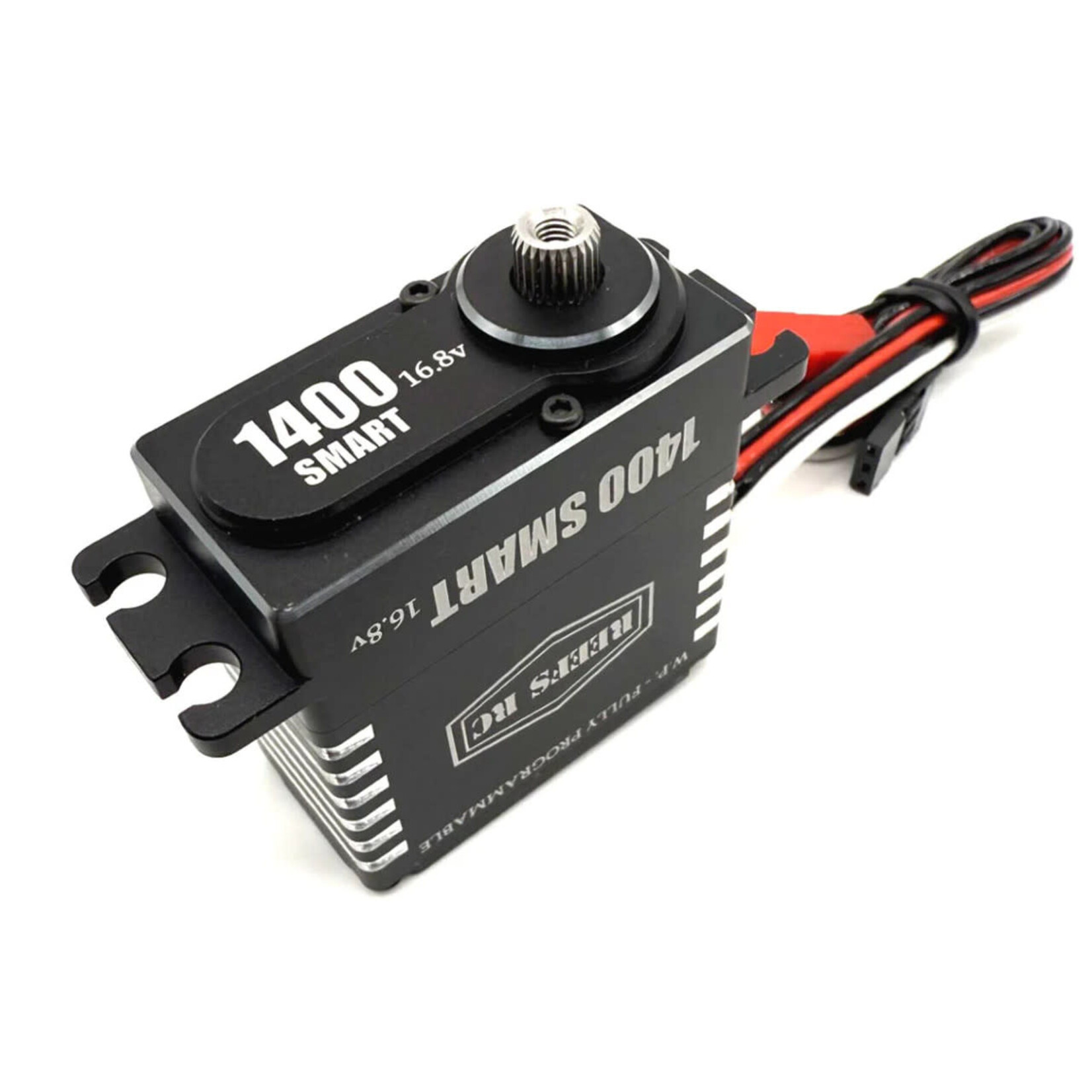

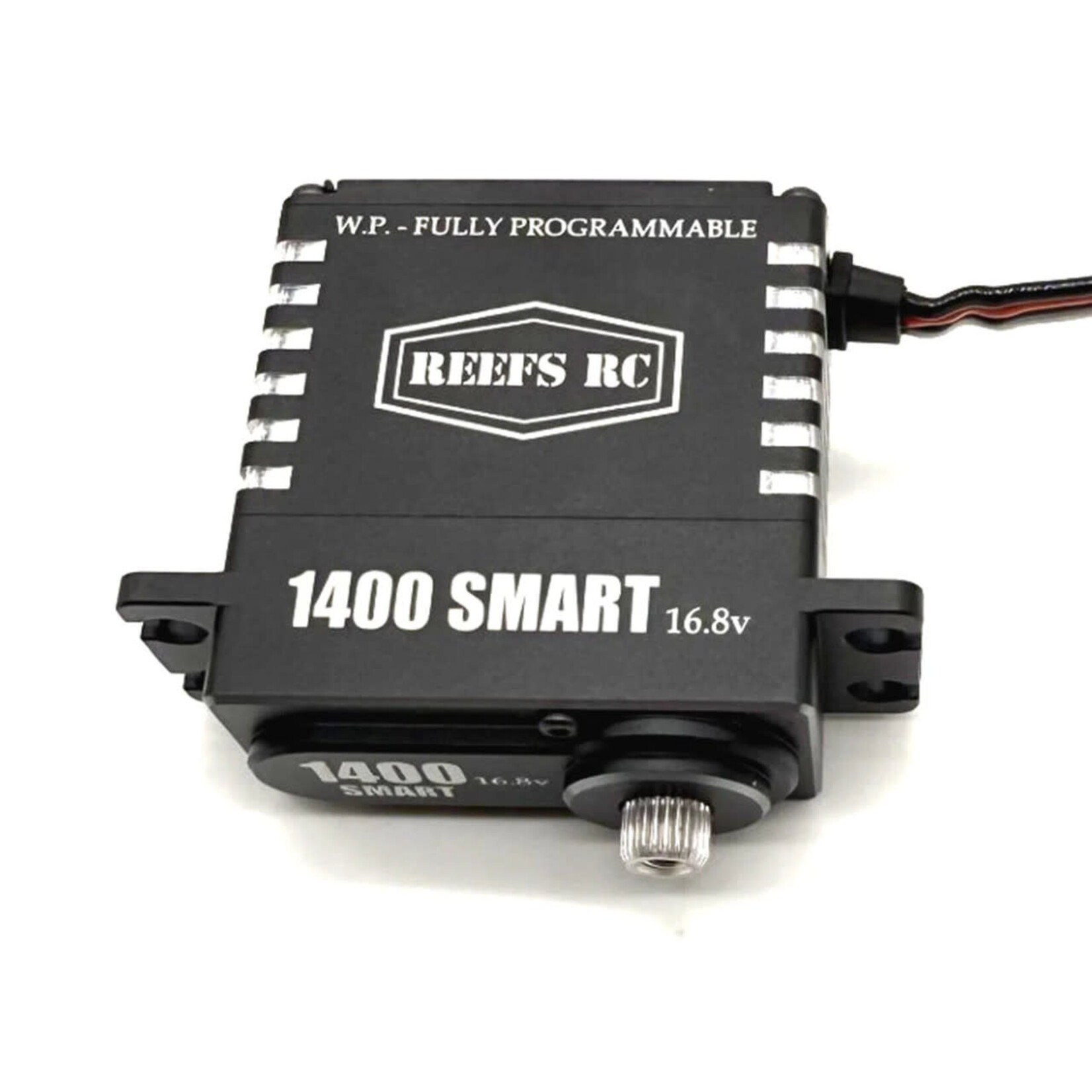

The 1400 SMART High Torque Direct Power Brushless Servo delivers exceptional torque, speed, and efficiency, making it an ideal choice for demanding RC applications. Designed with direct power input, it ensures consistent performance and reliability, even under high loads. The brushless motor technology enhances durability and responsiveness, providing smooth and precise control. Whether for RC cars, helicopters, or other high-performance models, this servo offers smart technology integration for optimized performance and real-time telemetry feedback. Built for strength and precision, the 1400 SMART servo is engineered to handle the toughest conditions with ease.
Features:
- High-voltage compatibility for demanding applications
- 4-Pole Brushless motor for faster, smoother operation
- Durable steel gears for long-lasting performance
- Full aluminum black anodized heat sink case
- Extreme High-Torque
- Pulse Width Modulation Control
- Military Grade Construction
- Built in Preprogrammed Winch Controller
- Comes as SERVO out of the Box, can be changed to Winch with the REEFS Link V2 (Sold separately) and Software
- Submarine waterproof 7 Point Seals
Specifications:
- Input Voltage: 10-16.8V
- Operating Speed @ 12.6V: 0.15 sec/60°
- Operating Speed @ 14.4V: 0.13 sec/60°
- Operating Speed @ 16.8V: 0.11 sec/60°
- Dynamic Torque @ 12.6V: 1140oz-in (20.0kg-cm)
- Dynamic Torque @ 14.4V: 1223oz-in (25.0kg-cm)
- Dynamic Torque @ 16.8V: 1400oz-in (25.0kg-cm)
- Pulse/Frequency: -
- Motor Type: 4-Pole Brushless
- Output Shaft: 25T
- Gear Material: Steel
- Dimensions: 1.57x0.79x1.5in (40x20x42mm)
- Weight: 3.19oz (90.4g)
Includes:
- (1) 1400 SMART Servo
- (1) Servo Accessory Set
- Mounting Hardware
