Convenience, value, and top-level performance come together in the comp-ready SCX10 Pro 4WD kit. The Pro has many innovations and advantages for drivers who tackle tough lines for the win — as well as for those who simply want to crawl with the best.
More than the brand of choice for weekend adventurers, Axial also delivers at the most demanding levels of competition. With the 1/10 scale SCX10 Pro 4WD, Axial answers the call for an innovative, easy-to-build scale crawler kit that fuels the competitive spirit with top-level performance on the trails. Every component designed for the Pro kit helps you win comps by taking and conquering tough lines.
Whether your aim is to compete or you just want to drive the best of the best, the SCX10 Pro 4WD is the kit for you. The Pro crawler arrives thoughtfully engineered to deliver the highest level of performance — steadily following your chosen course over sidehills and steep rock climbs while supplying the confidence that can only come from knowing there's almost nothing your rig can't do.
While leading in innovation, the Pro is also the easiest, most convenient and cost-effective way to build a comp-ready scale crawler. There's no guesswork, and no searching among multiple manufacturers to piece together the best chassis, transmission, drive shafts, axles, shocks, and more. Just add your favorite electronics, body, tires, and wheels to the SCX10 Pro 4WD kit, which has already proven its worth by winning and placing at the Little Rock City Scale Nationals, Clash of the Four Cardinals, SuperShafty Fall Crawl, and other events.
The lightweight, highly adjustable Pro chassis is a comp-specific design that's optimized for climbing, side hilling, and break over. The multi-piece axles are built with steel tubes and can accommodate a chassis-mounted (CMS) or axle-mounted (AMS) servo. The motor mount positions the motor low and forward in the chassis for improved weight distribution. It also allows you to underdrive the rear axle via servo or to manually lock the rear axle in 1:1 or underdrive.
For the best of the best RC scale crawler kits — with the highest level of performance engineering already included, for the lowest overall comp-ready cost — choose the SCX10 Pro 4WD. With Axial, the advantage is yours.

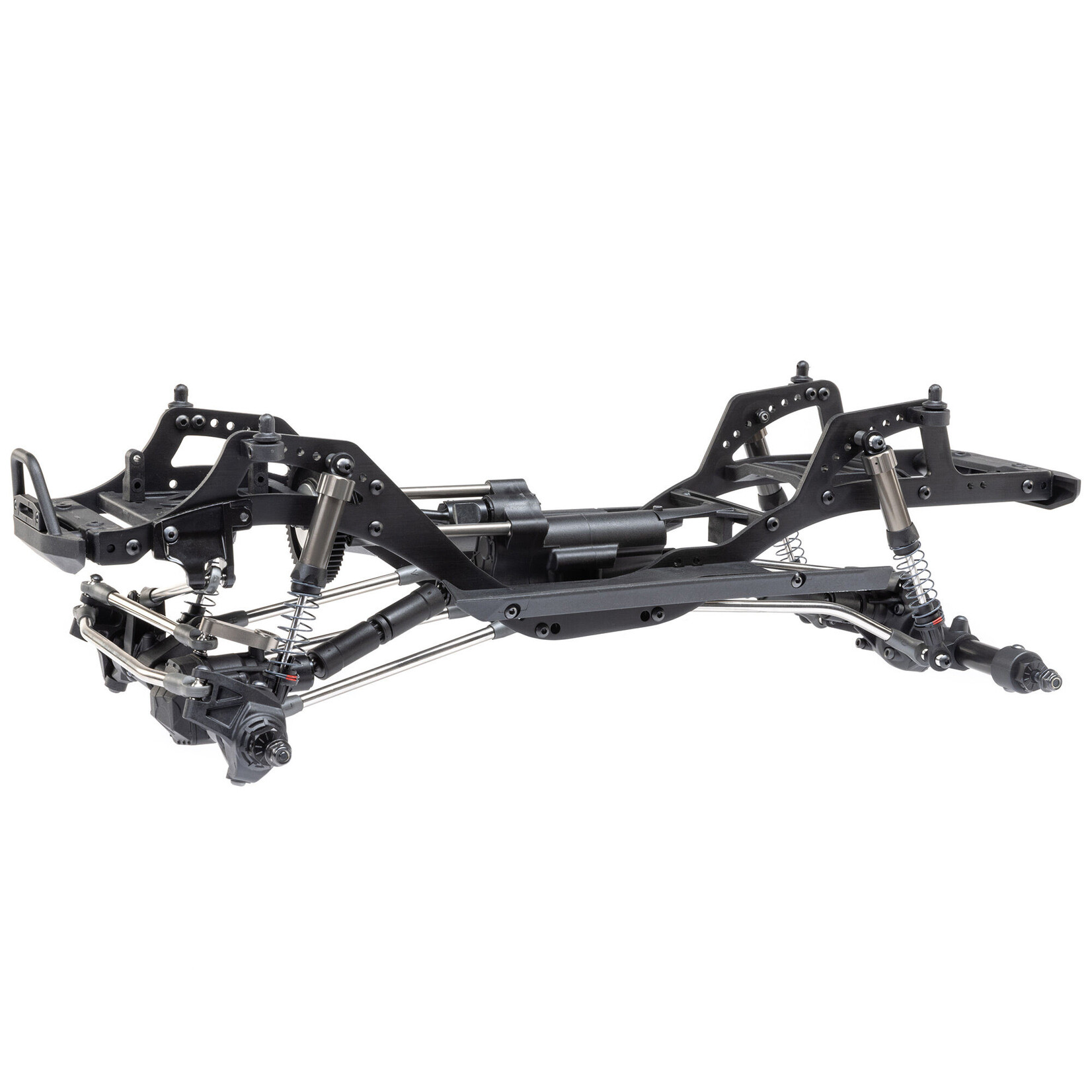

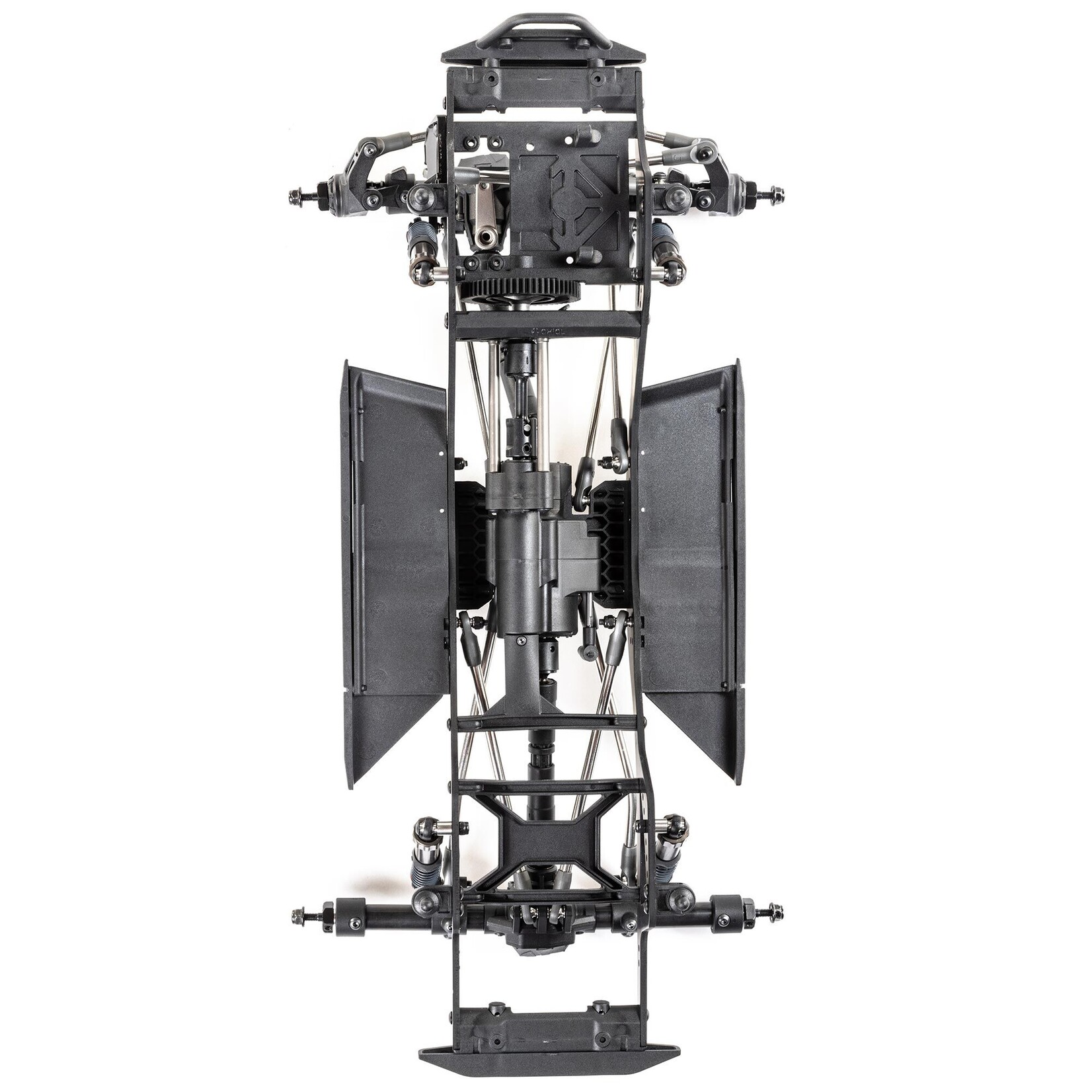

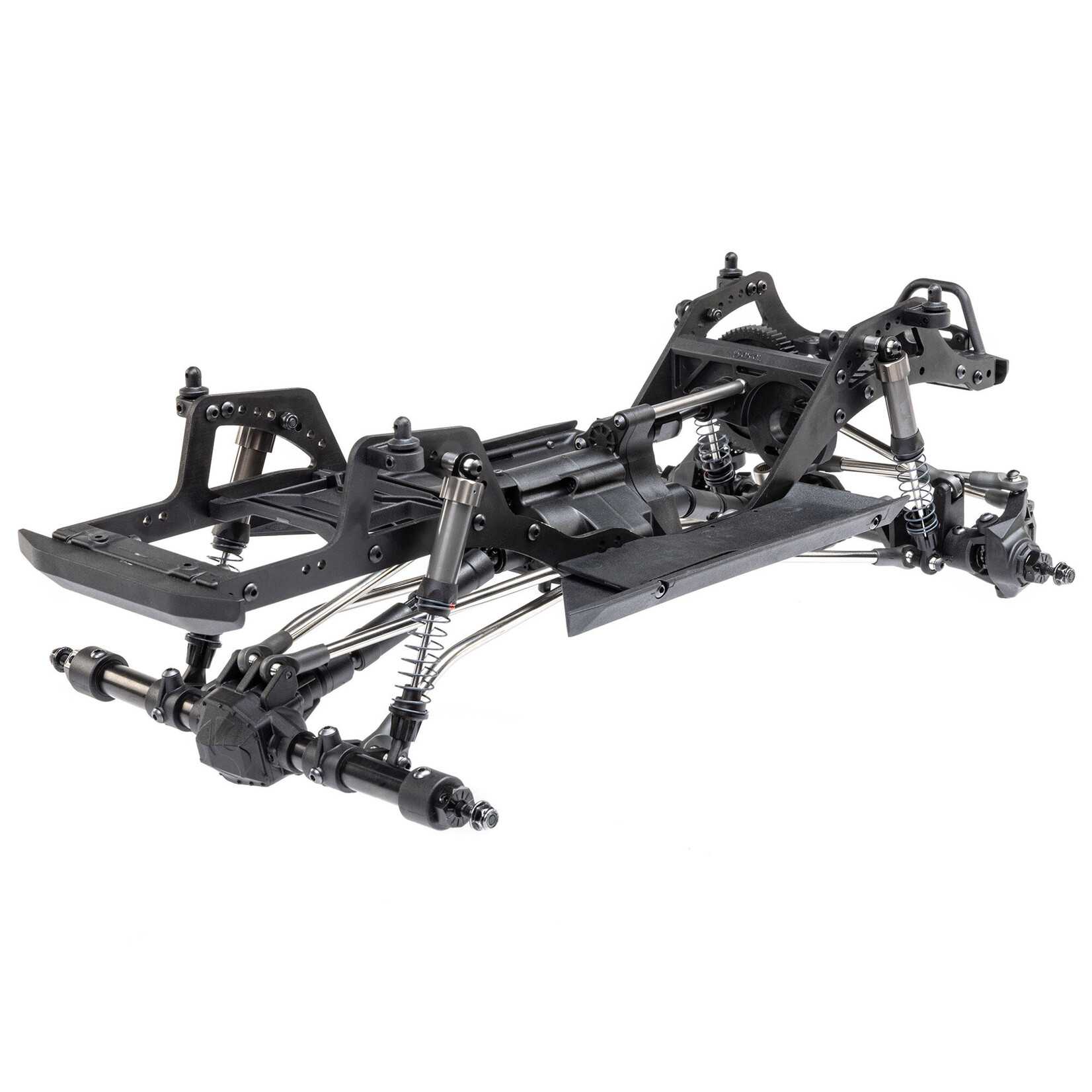

Lighter, lower, and highly adjustable, the aluminum plate SCX10 Pro 4WD chassis is optimized for comp-worthy crawling in climbs, side hilling, and break over. The 3-link/4-link suspension, new aluminum oil-filled shocks, and complete ball bearings keep performance smooth and steady.
Multi-piece axles with steel tubes can accommodate an axle-mounted servo (AMS) or a chassis-mounted servo (CMS) to increase the scale looks.
The motor mount positions your choice of motor low and forward in the chassis for superior weight distribution, providing the balance needed to keep from flipping while you conquer tough lines.
The transmission allows you to underdrive the rear axle by 40% manually or with a servo. Under driving the rear axle allows for a tighter turning radius and reduces "torque twist" on climbs.
By eliminating the shock spring and collar from outside of the shock body, the aluminum smooth body, oil-filled shocks provide higher clearance when taking advantage of the SCX10 Pro's increased steering angle. The shocks' eye-to-eye length is 96mm and uses 12mm diameter springs. The dual O-ring lower shock cap acts as the upper spring retainer, while the lower shock cup features a built-in bump stop that can be trimmed for fine-tuning your suspension.
| Shock Type | 2.9" - 3.8" (74-96mm) Aluminum Oil filled |
| Product Weight | 3lbs (1.4kg) Without Components |
| Servos | Sold Separately |
| Speed Control | Sold Separately |
| Ball Bearings | Complete Vehicle |
| Drivetrain | 4WD |
| Brakes | Integral with ESC |
| Charger | Sold Separately |
| Scale | 1/10 |
| Approximate Assembly Time | 5-7 Hours |
| Body | Not Included |
| Ground Clearance | 2.25" (57.1mm) |
| Product Width | 9.25" (235 mm) |
| Steering Type | 2WS |
| Vehicle Type | Rock Crawler |
| Chassis | Aluminum Plate |
| Internal Gear Ratio | 10.26:1, 15.33:1 |
| Motor Size | 540/550 recommended |
| Pinion | 13T |
| Product Height | 7" (178 mm) |
| Completion Level | Kit |
| Final Drive Ratio | 38.46:1, 57.50:1 |
| Power Type | Electric |
| Product Length | 16.65" (423 mm) |
| Radio | Sold Separately |
| Differential | Locked |
| Wheelbase | 12.5" (318 mm) |
| Suspension | 3-Link/4-Link |
| Battery | Sold Separately |
| Wheel Hex Size | 12mm |
| Gear Pitch | 32-Pitch |
| Receiver | Sold Separately |
